Tidal
Tidal
Proof Living is an authorised dealer. Purchasing through parallel importers can void warranty, installation and after-sales support.
Tidal

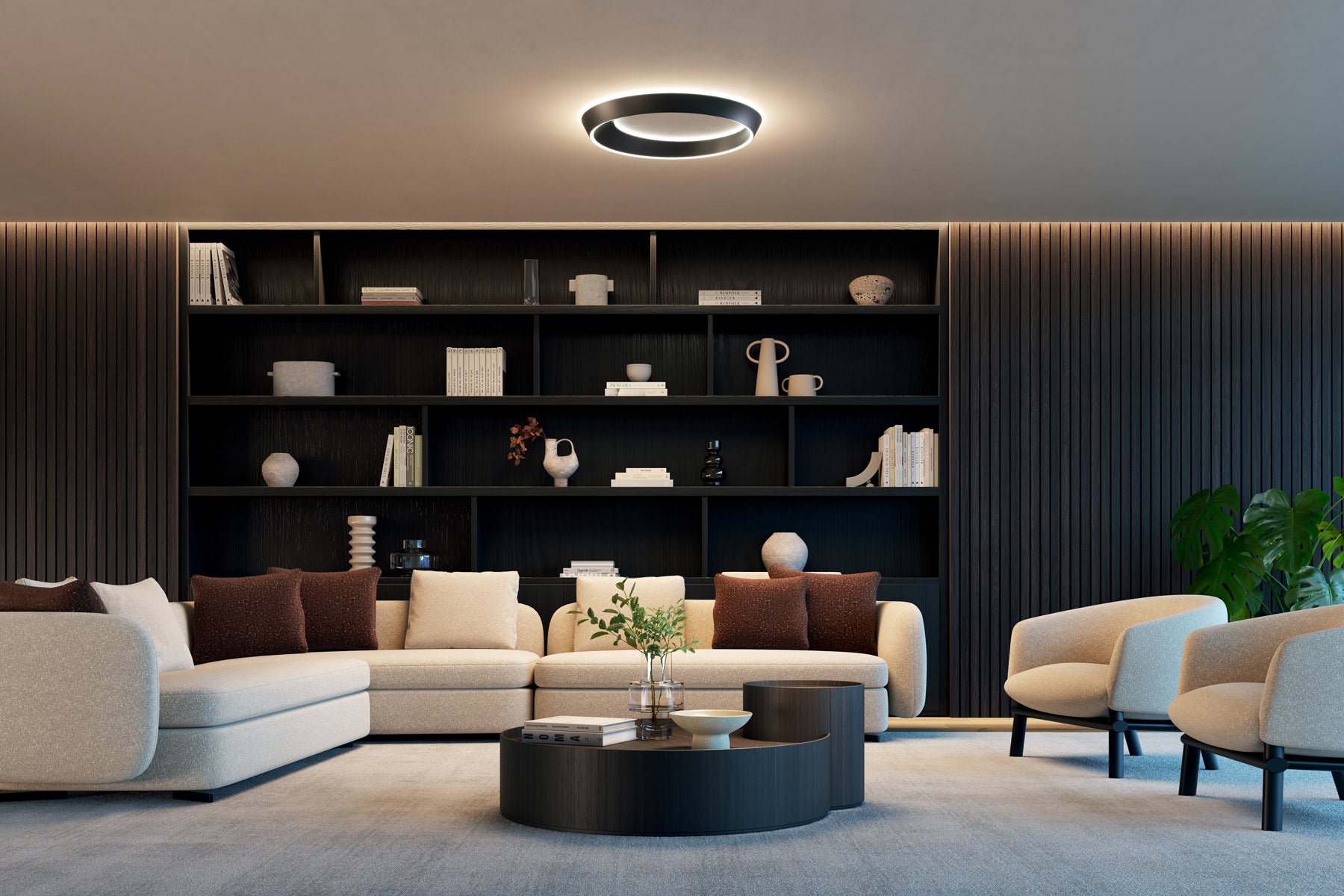

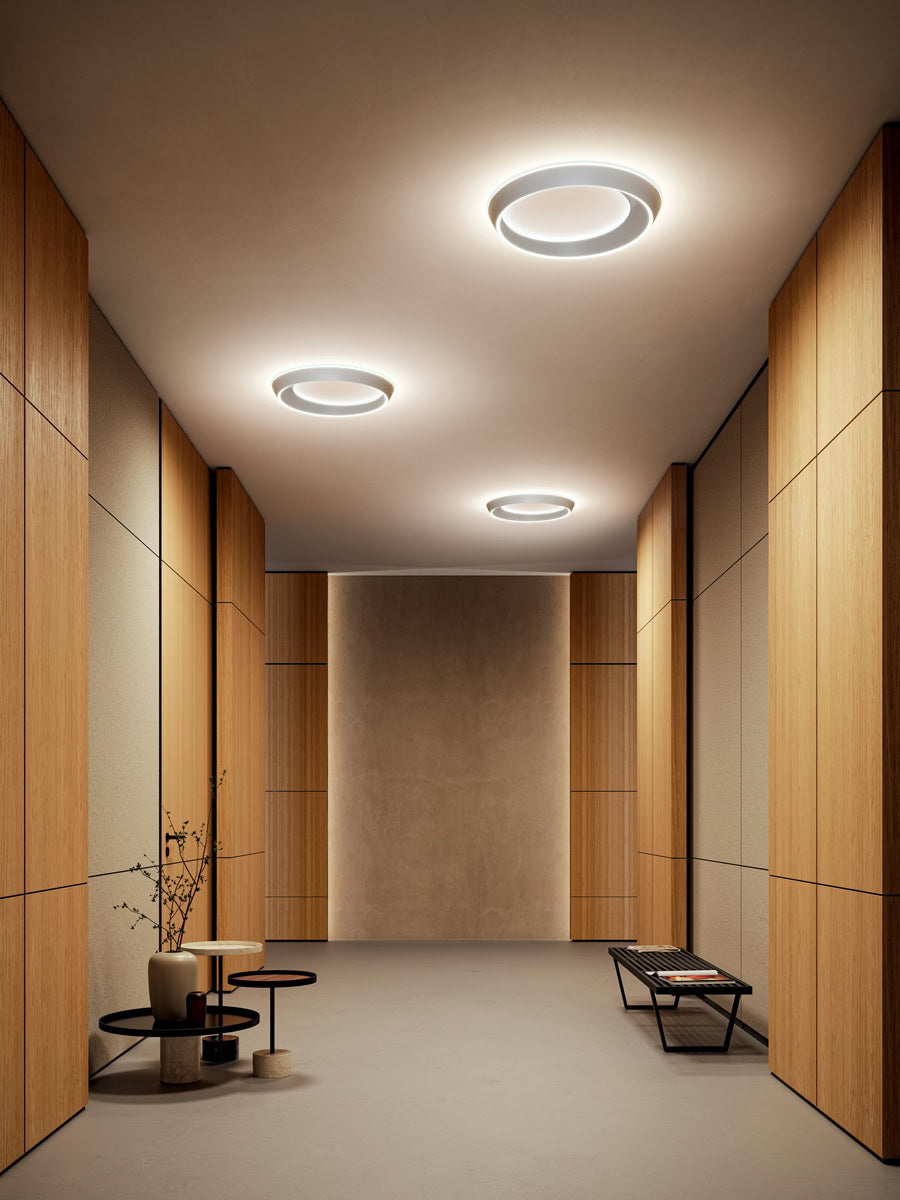

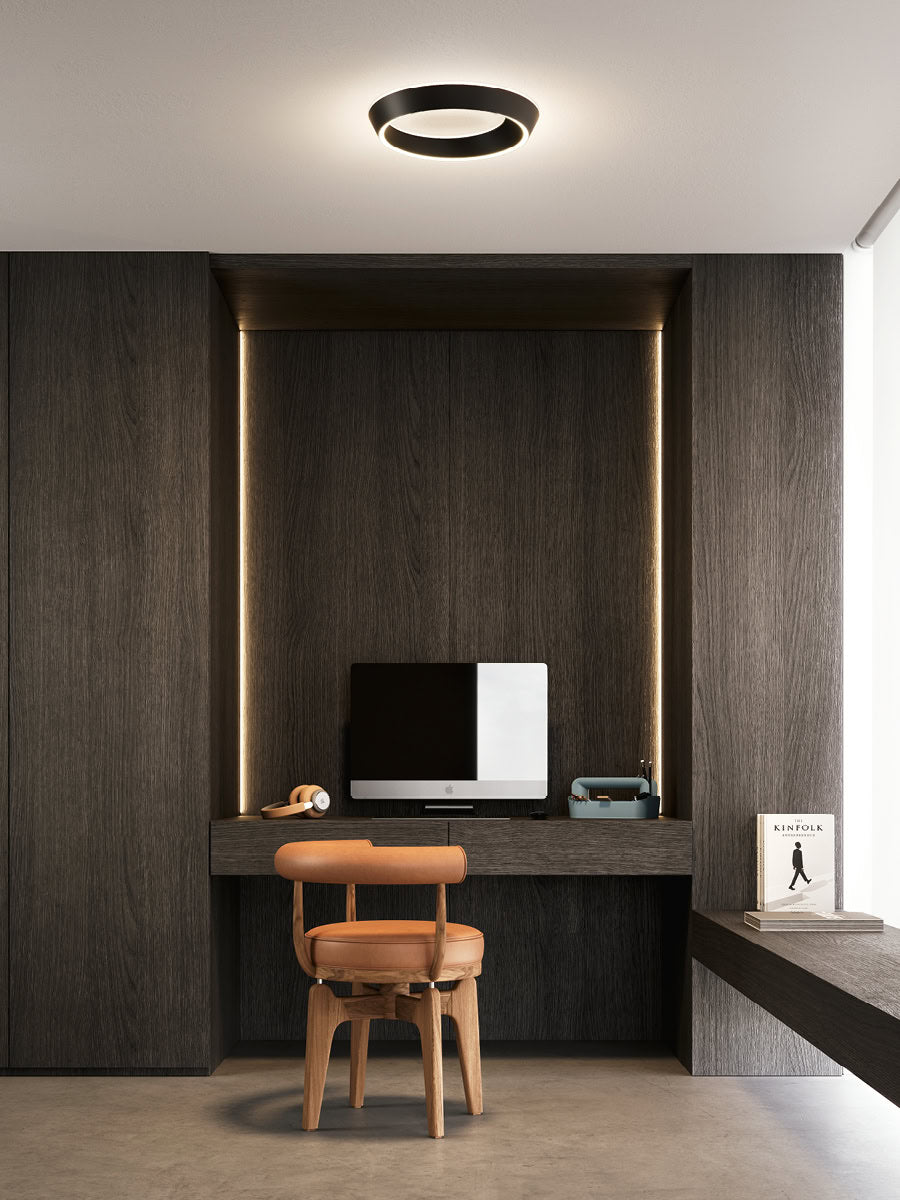

is an elegant family of lamps with exceptional luminous efficiency. A fluid and impactful design, inspired by the movements of celestial bodies and the tides, makes the lamps appear different depending on how they are observed from below thanks to the irregular asymmetric shape of the ring, with one side wider than the other. Tidal projects light simultaneously downwards and upwards, concealing all the technical elements within the compact and slim body to emphasize its aesthetic value.

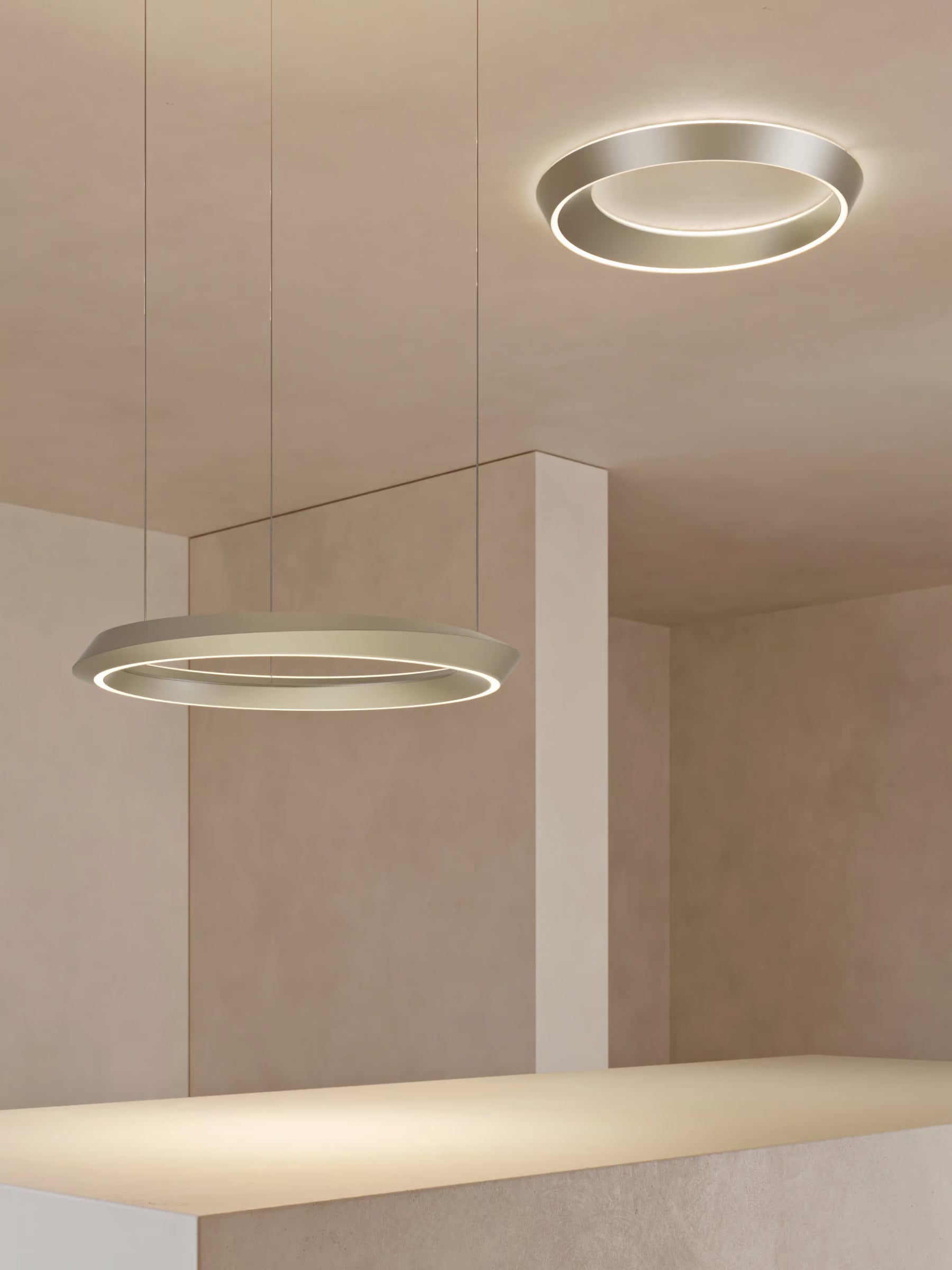

Born as a ceiling lamp, it is now also available as a pendant lamp: different sizes* ‒ 45, 60 and 75 cm for the ceiling and 60 cm for the pendant ‒ and four versatile matte finishes allow you to illuminate and decorate any type of environment, alone or in compositions, playing with the different functions and dimensions of the collection. The new stand-alone pendant is suitable for illuminating tables, even large ones, both in Food & Beverage and residential use.
*Currently, for the North American market, Tidal ceiling version is only available in two sizes: 60 and 75 cm Ceiling
Tidal 45 Triac | Light source | Structure: Metal | Code 2700 K | Code 3000 K
| LED / ↙ 2700 K / ↙ 27 W / ↙ 5040 lm / ↙ 1100 mA / ↙ CRI 90 / ↙ MacAdam 3-Step / or / LED / ↙ 3000 K / ↙ 27 W / ↙ 5292 lm / ↙ 1100 mA / ↙ CRI 90 / ↙ MacAdam 3-Step / LED and driver included | Matt White – 9010, Matt Black – 9005, Champagne Extra Matt, Terra Extra Matte | 19931 1027, 19931 2027, 19931 4527, 19931 6727 | 19931 1030, 19931 2030, 19931 4530, 19931 6730
Net weight: 2.80 kg
Packages: 1
CE
IP 20
EU-Energetic-Label
Triac
220-240V
EAC
DALI Controllable
on the
Ceiling
Tidal 45 Dali | Light source | Structure: Metal | Code 2700 K | Code 3000 K
| LED / 2700 K / 27 W / 5040 lm / 1100 mA / CRI 90 / 3-Step MacAdam / or / LED / 3000 K / 27 W / 5292 lm / 1100 mA / CRI 90 / 3-Step MacAdam / LED and driver included | Matte White – 9010, Matte Black – 9005, Champagne Extra Matte, Terra Extra Matte | 19934 1027, 19934 2027, 19934 4527, 19934 6727 | 19934 1030, 19934 2030, 19934 4530, 19934 6730
Net weight: 2.80 kg
Packages: 1
CE
IP 20
EU-Energetic-Label
Dali
220-240V
EAC
DALI Controllable
on the
Ceiling
Tidal 60 Triac | Light source | Structure: Metal | Code 2700 K | Code 3000 K
| LED / ↙ 2700 K / ↙ 37 W / ↙ 6975 lm / ↙ Direct light ➘ 600 mA / ↙ Indirect light ➘ 350 mA / ↙ CRI 90 / ↙ MacAdam 3–Step / The driver, included, is supplied with an output current set to 600 mA but can be adjusted during installation / ▲ 500 mA 40 W 6083 lm / ▲ 550 mA 44 W 6529 lm / Double ignition / or / LED / ↙ 3000 K / ↙ 37 W / ↙ 7320 lm / ↙ Direct light ➘ 600 mA / ↙ Indirect light ➘ 350 mA / ↙ CRI 90 / ↙ MacAdam 3–Step / The driver, included, is supplied with an output current set to 600 mA but can be adjusted during installation / ▲ 500 mA 40 W 6385 lm / ▲ 550 mA 44 W 6853 lm / Double switch / LED and driver included | Matt White, Matt Black – 9005, Champagne Extra Matt, Terra | 19933 1027, 19933 2027, 19933 4527, 19933 6727 | 19933 1030, 19933 2030, 19933 4530, 19933 6730
Net weight: 3.90 kg
Packages: 1
CE
IP 20
EU-Energetic-Label
Triac
220-240V
EAC
DALI Controllable
Dali
all
Tidal 60 Driver
The supplied driver has an output voltage of 600 mA, however it can be adjusted during installation:
2700 K
↙ 500 mA 40 W – 6083 lm
↙ 550 mA 44 W – 6529 lm
3000 K
↙ 500 mA 40 W – 6385 lm
↙ 550 mA 44 W – 6853 lm
Ceiling

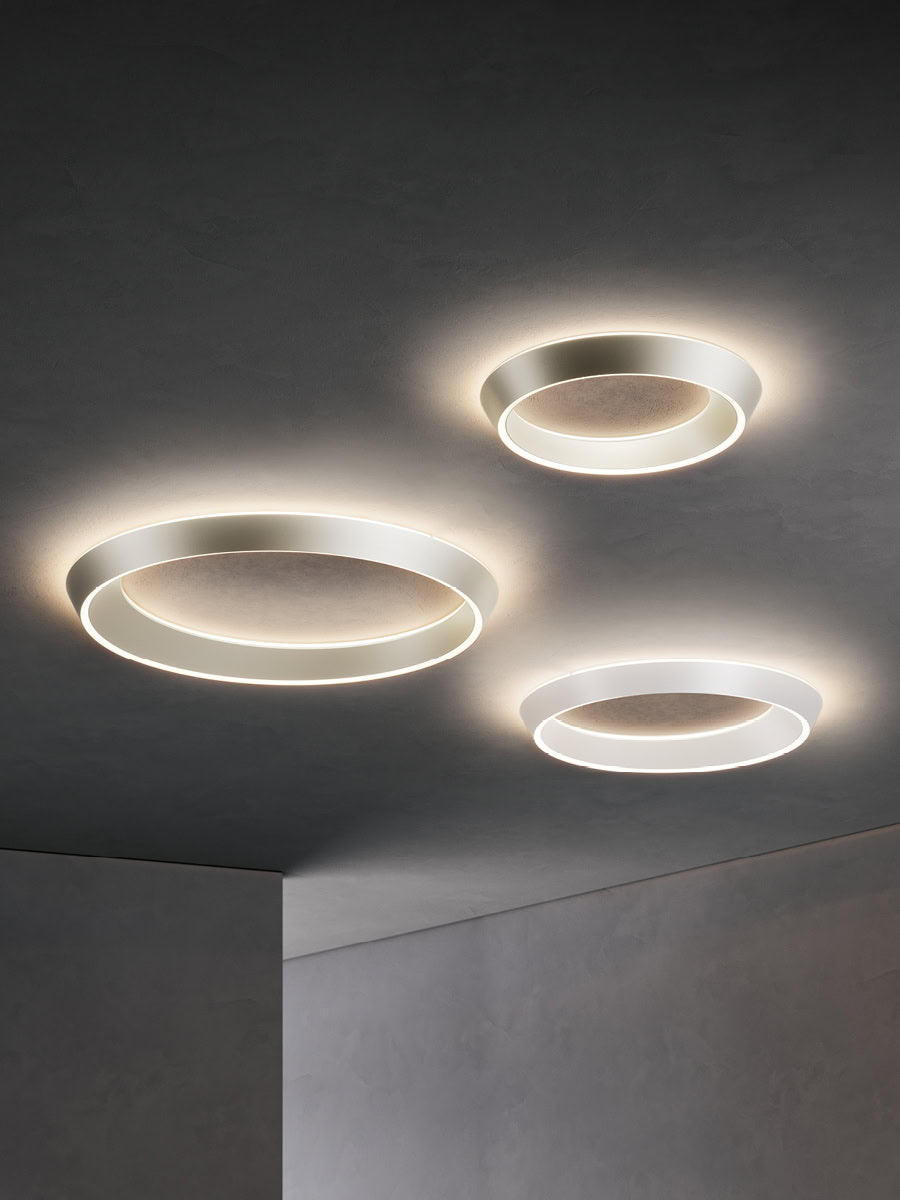

Tidal 60 Dali | Light source | Structure: Metal | Code 2700 K | Code 3000 K
| LED / 2700 K / 37 W / 6975 lm / Direct light ↙ 600 mA / Indirect light ↙ / 350 mA / CRI 90 / MacAdam 3-Step / The driver, included, is supplied with an output current set to 600 mA but can be adjusted during installation / ▲ 500 mA 40 W 6083 lm / ▲ 550 mA 44 W 6529 lm / Double ignition / or / LED / 3000 K / 37 W / 7320 lm / Direct light ↙ 600 mA / Indirect light ↙ / 350 mA / CRI 90 / MacAdam 3-Step / The driver, included, is supplied with an output current set to 600 mA but can be adjusted during installation / ▲ 500 mA 40 W 6385 lm / ▲ 550 mA 44 W 6853 lm / Double switch / LED and driver included | Matt White – 9010, Matt Black – 9005, Extra Matt Champagne, Extra Matte Terra | 19935 1027, 19935 2027, 19935 4527, 19935 6727 | 19935 1030, 19935 2030, 19935 4530, 19935 6730
Net weight: 3.90 kg
Packages: 1
CE
IP 20
EU-Energetic-Label
Dali
DALI Controllable
EAC
220-240V
on the
Ceiling
Tidal 75 Triac | Light source | Structure: Metal | Code 2700 K | Code 3000 K
| LED / ↙ 2700 K / ↙ 46 W / ↙ 8589 lm / ↙ Direct light ➘ 700 mA / ↙ Indirect light ➘ 550 mA / ↙ CRI 90 / ↙ MacAdam 3–Step / The driver, included, is supplied with an output current set to 700 mA but can be adjusted during installation / ▲ 500 mA 39 W 6855 lm / ▲ 550 mA 43 W 7289 lm / ▲ 600 mA 47 W 7722 lm / Double ignition / or / LED / ↙ 3000 K / ↙ 46 W / ↙ 9072 lm / ↙ Direct light ➘ 700 mA / ↙ Indirect light ➘ 550 mA / ↙ CRI 90 / ↙ MacAdam 3–Step / The driver, included, is supplied with an output current set to 700 mA but can be adjusted during installation / ▲ 500 mA 39 W 7236 lm / ▲ 550 mA 43 W 7695 lm / ▲ 600 mA 47 W 8154 lm / Double switch / LED and driver included | Matt White, Matt Black – 9005, Champagne Extra Matt, Terra Extra Matte | 19932 1027, 19932 2027, 19932 4527, 19932 6727 | 19932 1030, 19932 2030, 19932 4530, 19932 6730
Net weight: 5.38 kg
Packages: 1
CE
IP 20
EU-Energetic-Label
Triac
220-240V
EAC
DALI Controllable
all
Tidal 75 Driver
The supplied driver has an output voltage of 700 mA, however it can be adjusted during installation:
2700 K
↙ 500 mA 39 W – 6855 lm
↙ 550 mA 43 W – 7289 lm
↙ 600 mA 47 W – 7722 lm
3000 K
↙ 500 mA 39 W – 7236 lm
↙ 550 mA 43 W – 7695 lm
↙ 600 mA 47 W – 8154 lm
Ceiling

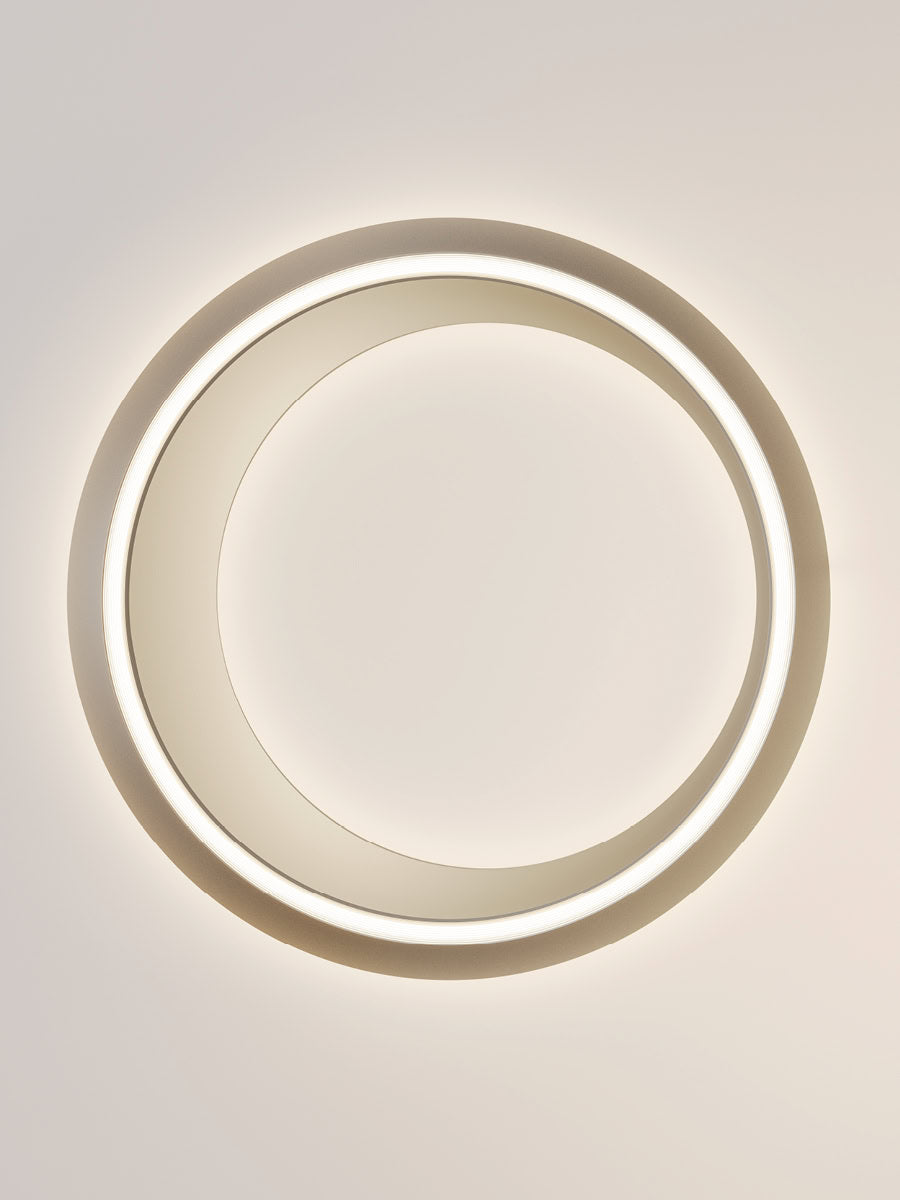

Tidal 75 Dali | Light source | Structure: Metal | Code 2700 K | Code 3000 K
| LED / 2700 K / 46 W / 8589 lm / Direct light ↙ 700 mA / Indirect light ↙ 550 mA / CRI 90 / MacAdam 3-Step / The driver, included, is supplied with an output current set to 700 mA but can be adjusted during installation / ▲ 500 mA 39 W 6855 lm / ▲ 550 mA 43 W 7289 lm / ▲ 600 mA 47 W 7722 lm / Double ignition / or / LED / 3000 K / 46 W / 9072 ... Installation / ▲ 500 mA 39 W 7236 lm / ▲ 550 mA 43 W 7695 lm / ▲ 600 mA 47 W 8154 lm / Dual switch / LED and driver included | Matt White – 9010, Matt Black – 9005, Extra Matt Champagne, Extra Matte Terra | 19936 1027, 19936 2027, 19936 4527, 19936 6727 | 19936 1030, 19936 2030, 19936 4530, 19936 6730
Net weight: 5.38 kg
Packs: 1
CE
IP 20
Dali
220-240V
EAC
DALI Controllable
all
